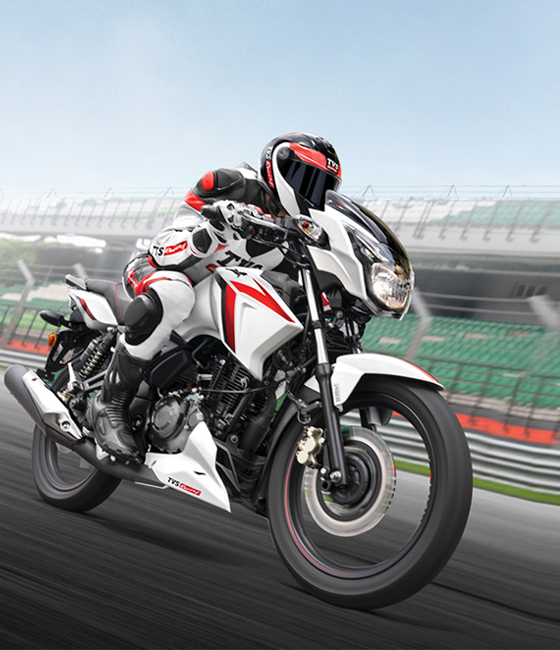

TVS Apache RTR 160 Motorcycle Overview
A mainstay in the Apache stable and on the racetrack, Apache RTR 160 from the house of TVS Racing has racked up laurels in all forms of racing and continues to stand on the podium.
Colours
Pearl White

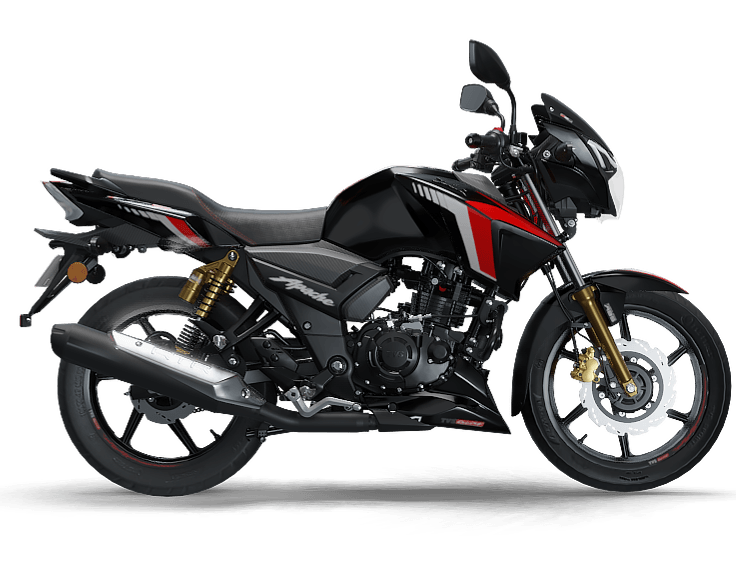

Black
Grey
Matte Blue
Matte Red
Features

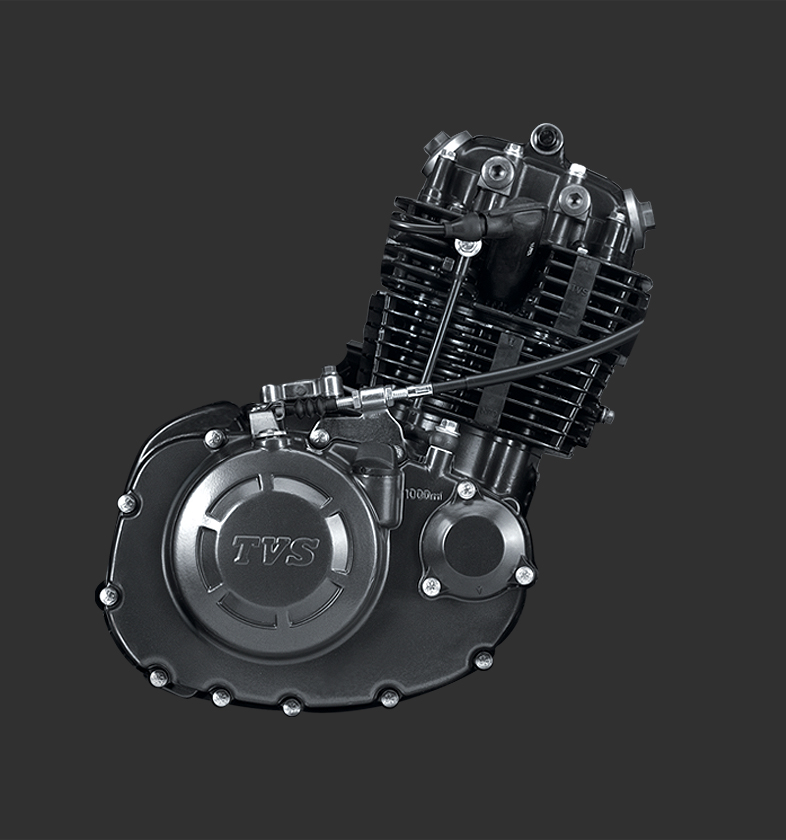

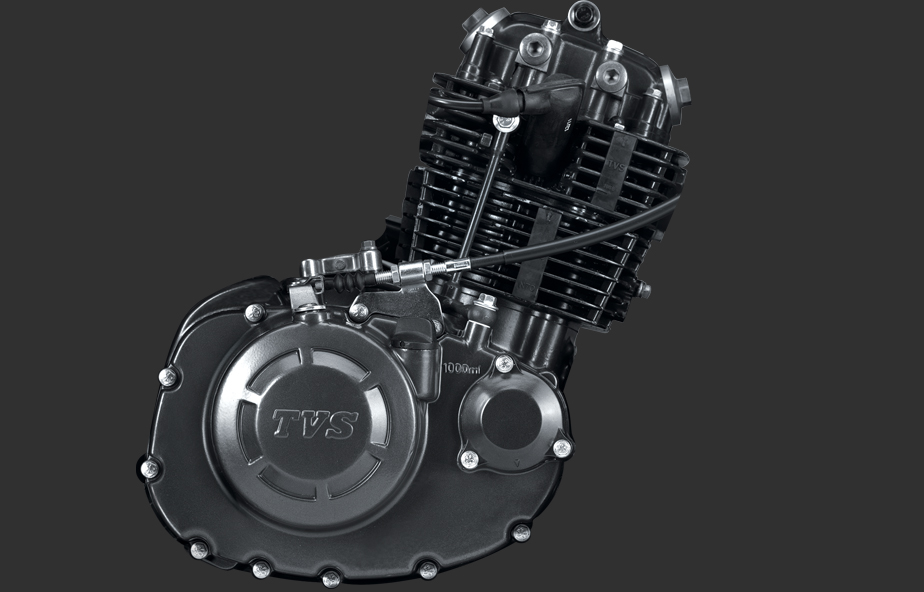

RTR Over Square Engine
Powered by the RTR Oversquare Engine. The system has optimised the engine so that racers can experience the ultimate performance in any race condition.

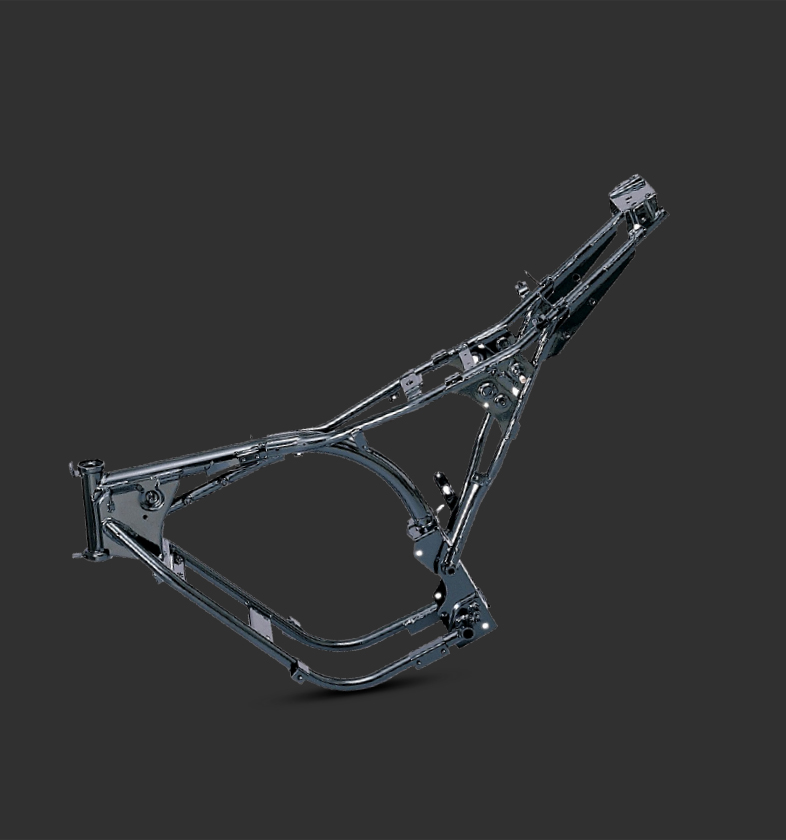

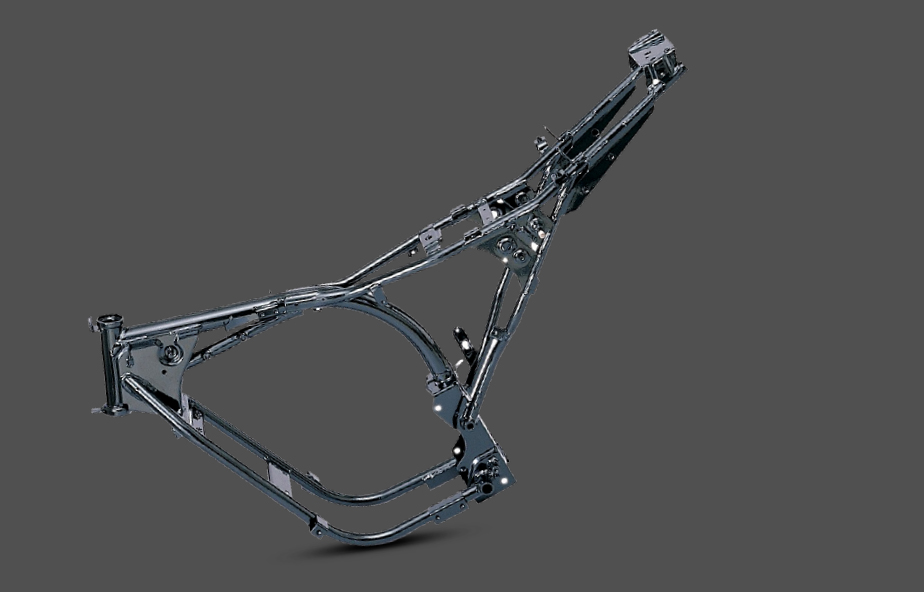

Synchro Stiff Chassis
The spine of the racing machine provides stiffness for straight line performance and flex for aggressive cornering.

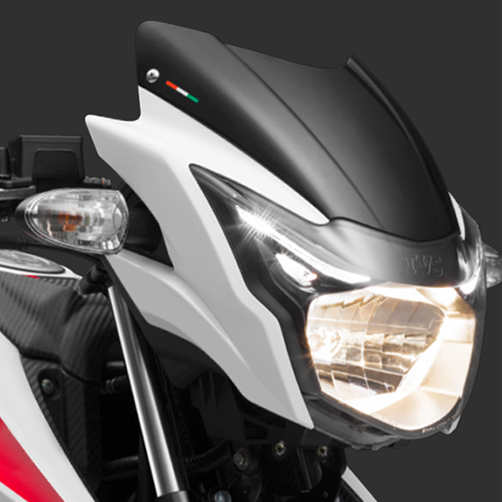

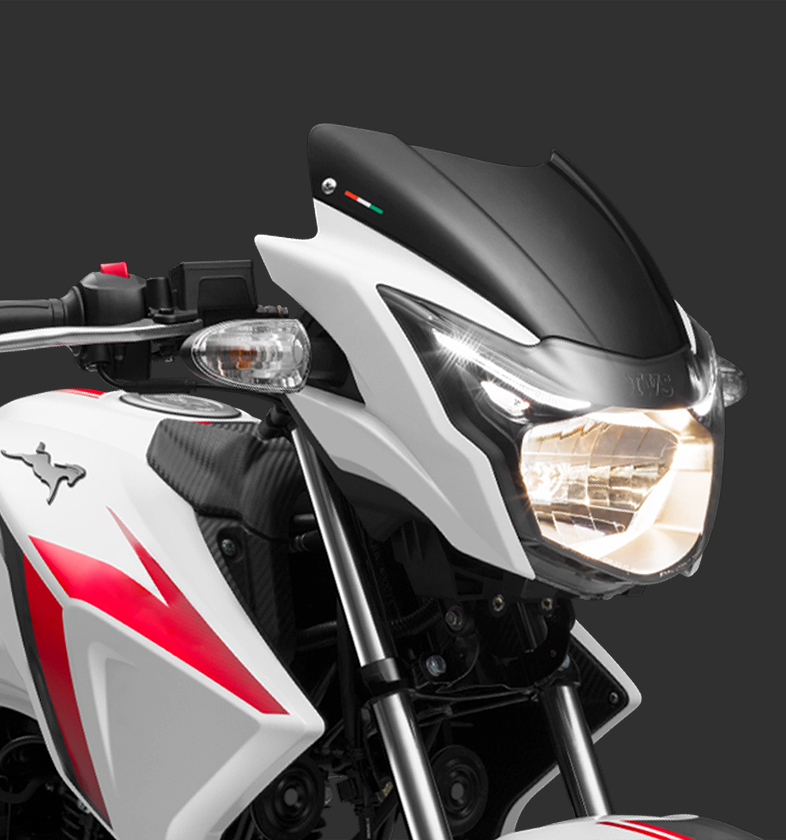

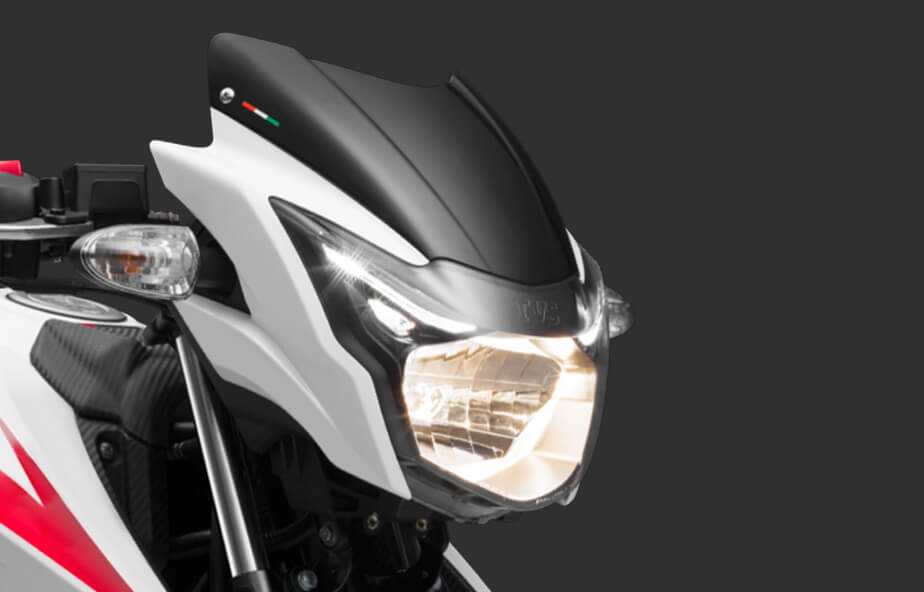

Beast Inspired Headlamps
The LED light guide along with the pilot lamps produces an intense, raw, animalistic gaze. The throw from the headlamp provides clear visibility.

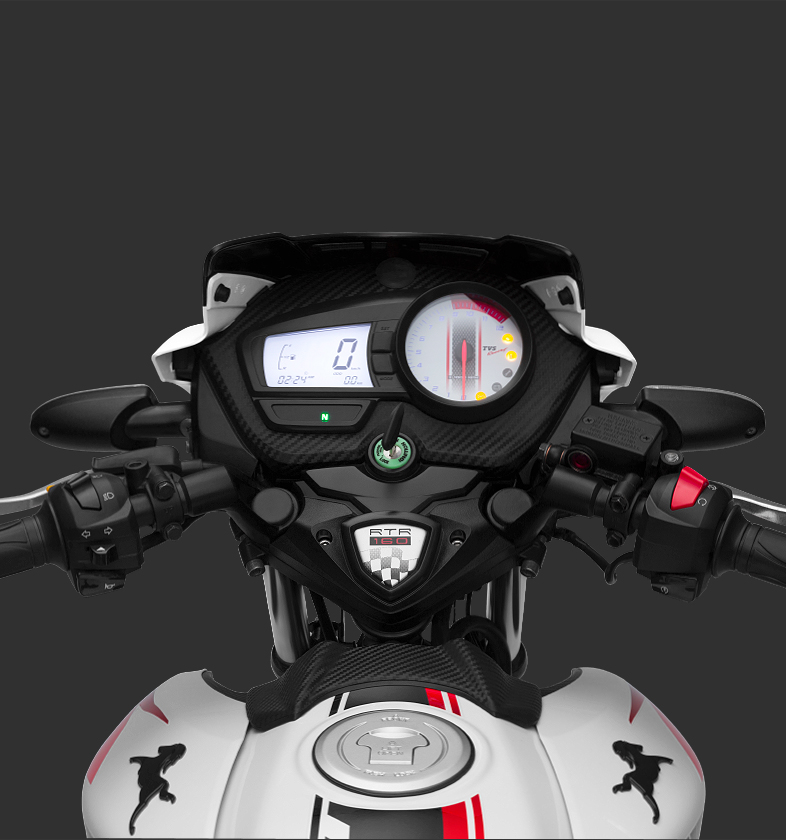

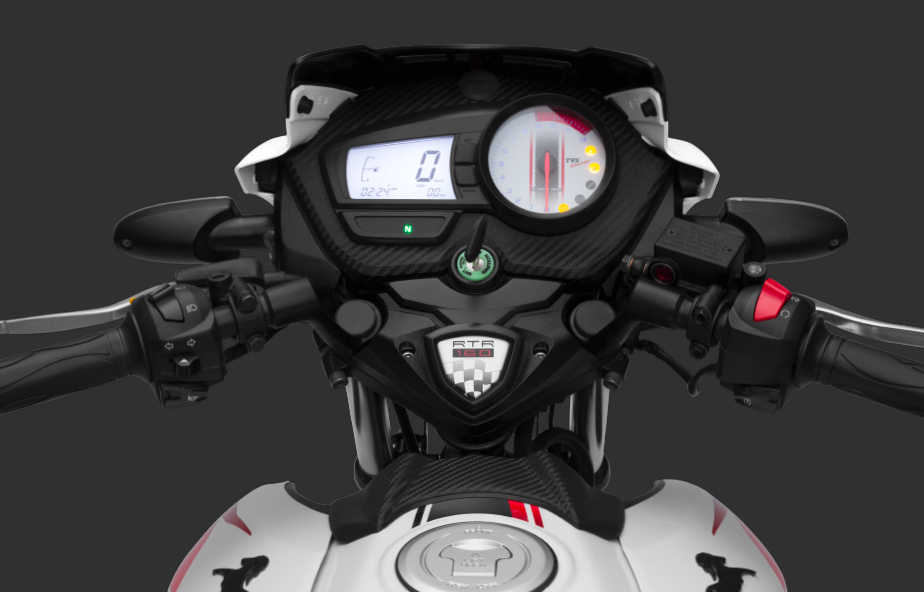

Race Inspired Digital Display
Designed with race inspired carbon fibre cues, the countdown on ignition speedometer has a distinct white backlit display.

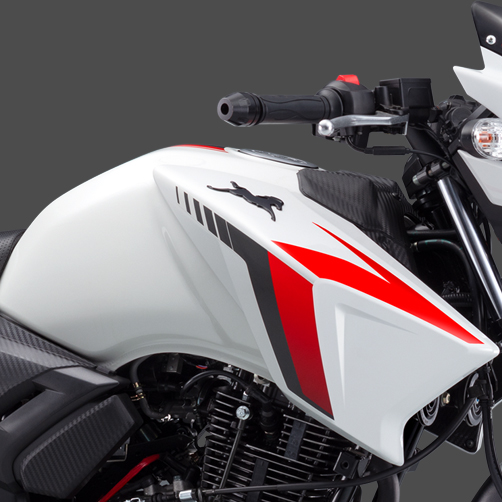

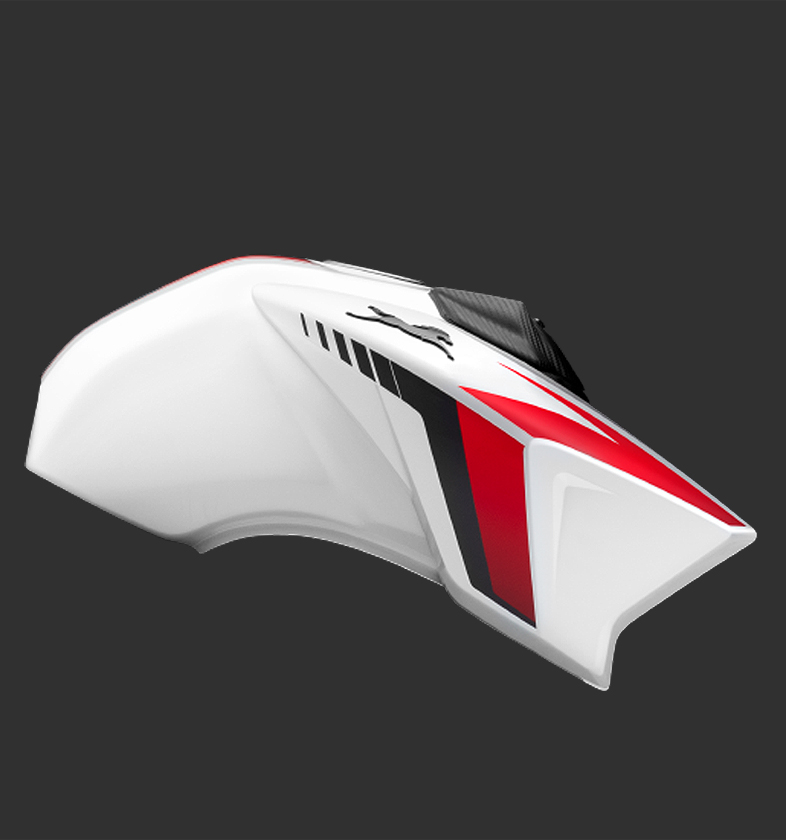

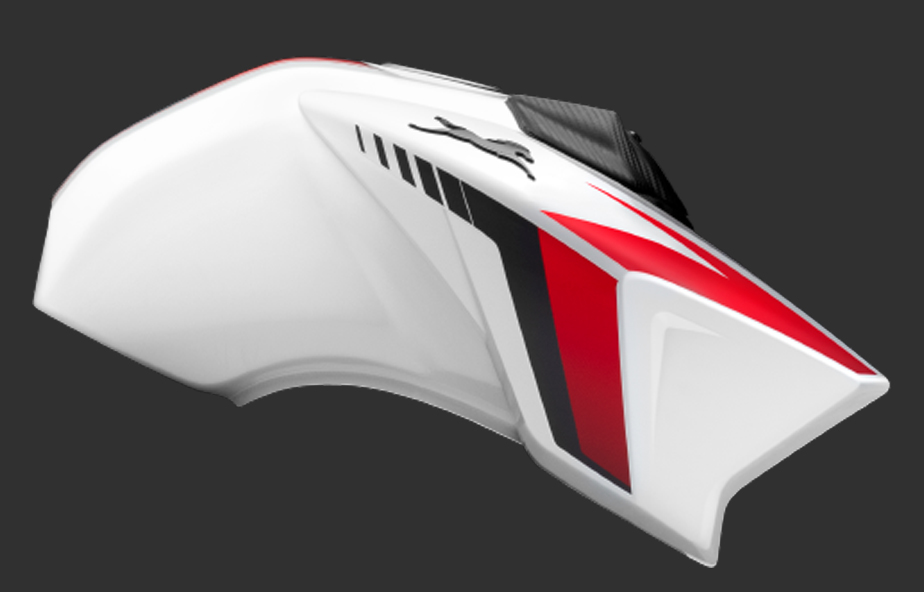

New Race Graphics
The graphics on the race machine draw their inspiration from the RTR's conquests on the track.

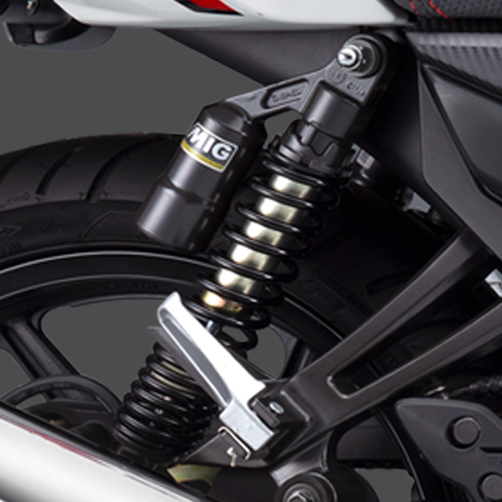

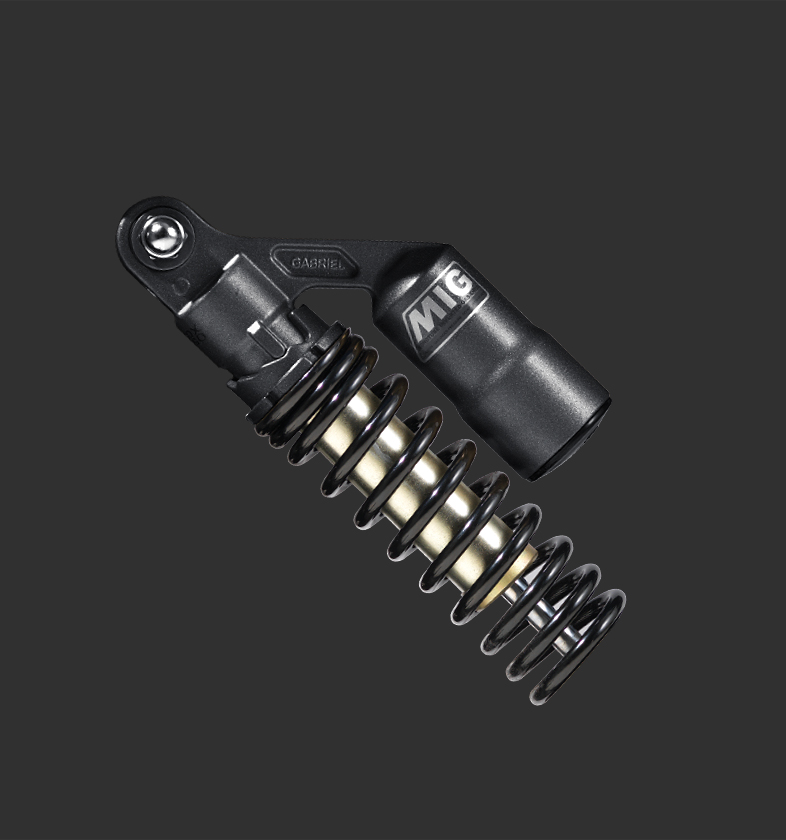

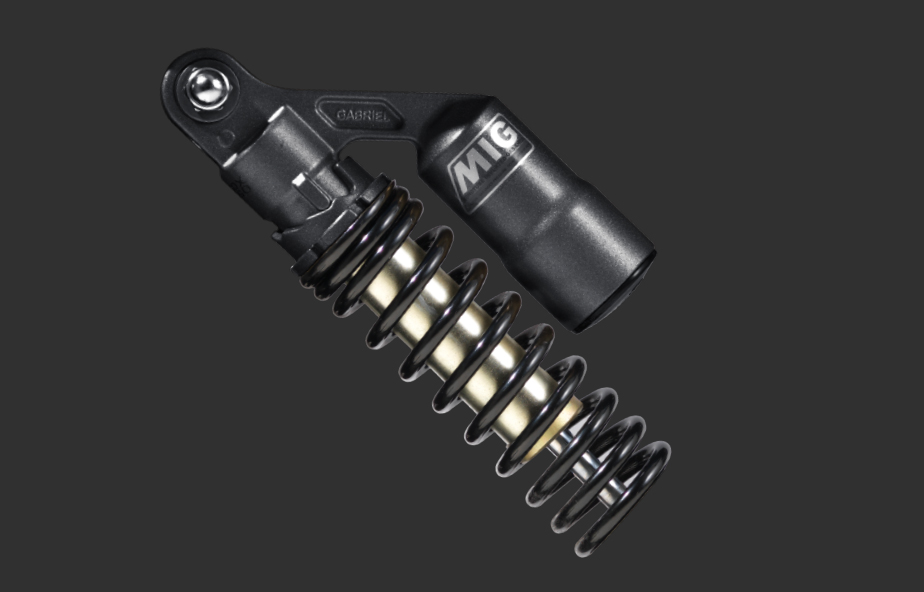

MIG Suspension
The rear monotube inverted gas filled 5 step adjustable shocks ensures cornering aggression meets agility.
Specifications
-
Type
SI, 4- stroke, Air- Cooled -
Engine capacity
159.7 cm3 -
Max. Power(PS @ rpm)
14.14 PS @8000 rpm -
Max. Torque (Nm @ rpm)
13.2 Nm @ 6750 rpm -
Fuel supply system
Carburettor -
Valve per cylinder
2 Valves -
Starting
Electric & Kick Start -
Gear box
5 speed gear box
-
Frame
Double Cradle Synchro STIFF -
Front Suspension
Telescopic forks -
Rear Suspension
Monotube Inverted Gas-filled shox (MIG) with spring aid
-
Battery Rating (Ah)
12V, 9Ah MF -
Headlamp
Halogen HS1 12V 35/35W with AHO, Clear lens with MFR with LED position lamp -
Tail Lamp
LED
-
Tyre (front)
90/90-17 49P Tubeless -
Tyre (rear)
120/70 * 17 Tubeless -

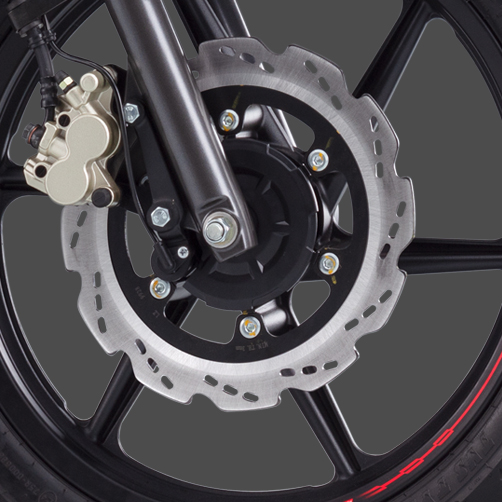

Front Brake (Disc)
270mm dia Petal Disc -
Rear Brake (Disc/Drum)
Drum-130mm dia Drum
Disc-200mm dia Petal Disc -
Brake Fluid
DOT 3 / DOT 4
-
Height
1105 mm -
Length
2085 mm -
Width
730 mm -
Wheelbase
1300 mm -
Ground Clearance
165 mm -
Saddle Height
790 mm -
Kerb weight (with 90% fuel and tool kit)
Rear Drum version - 139 kg, Rear Disc version - 140 kg
-
Fuel Tank Capacity
16 l
