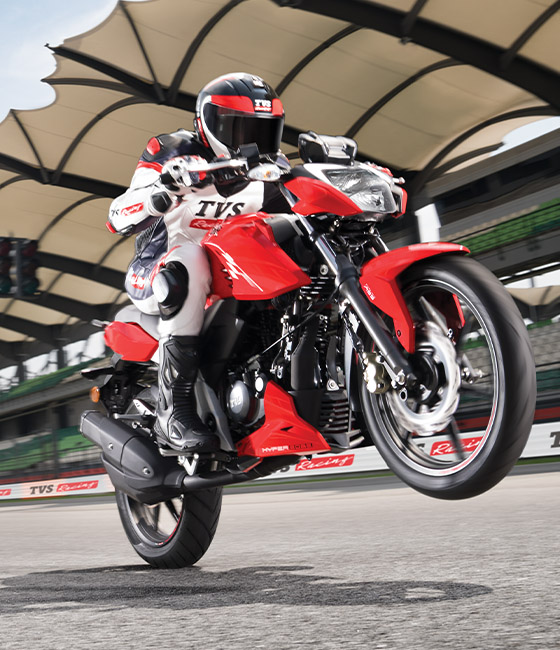

TVS Apache RTR 160 4V Motorcycle Overview
The TVS Apache RTR 160 4V is a powerful entry in the line of TVS Apache race machines. With an imposing track presence, this machine is a testament to the future of cutting edge race technology.
Colours
Racing Red
Knight Black
Metallic Blue
Features

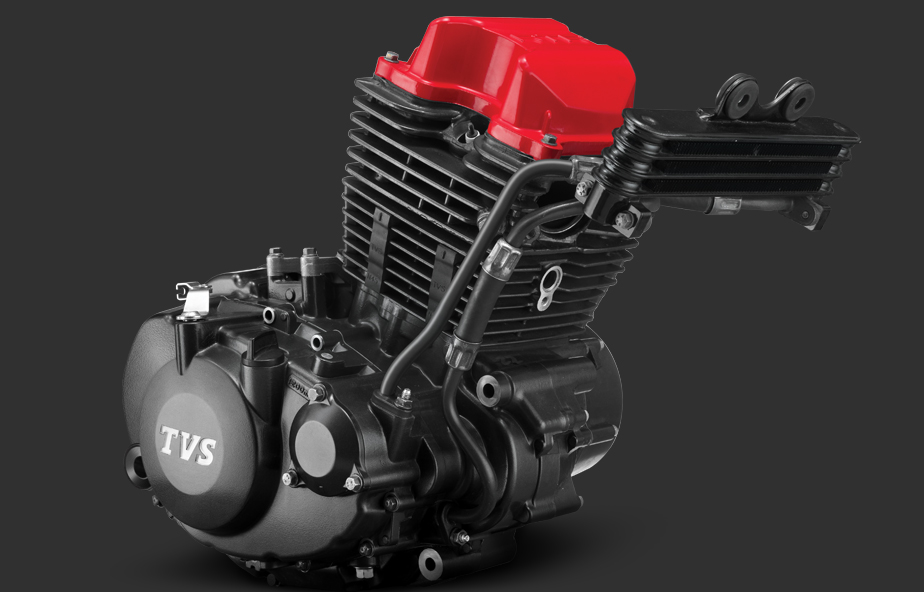

INMRC Winning Engine
The Oil-cooled 4 Valve, short stroke engine produces 16.5 PS@ 8000 rpm. The power plant is derived from the 7-time INMRC prototype.

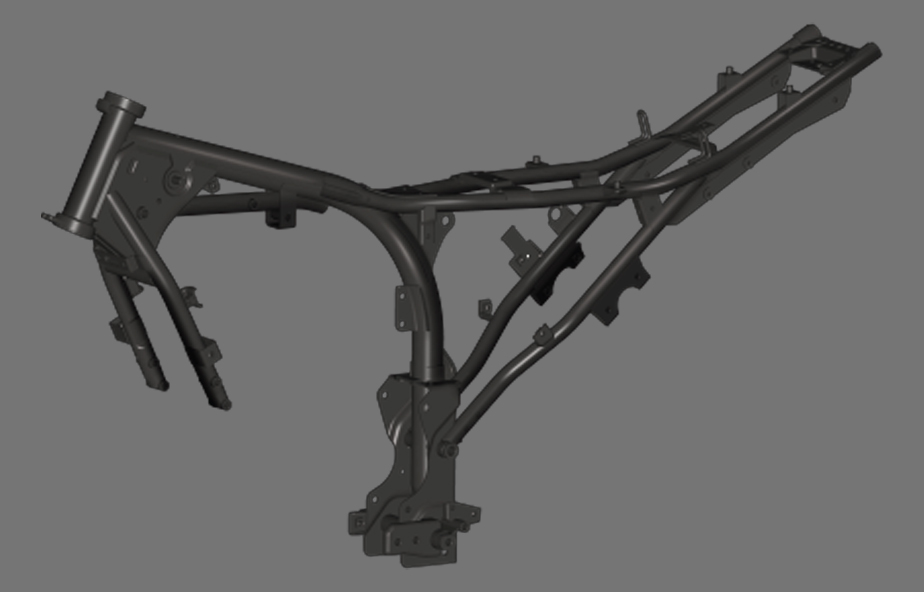

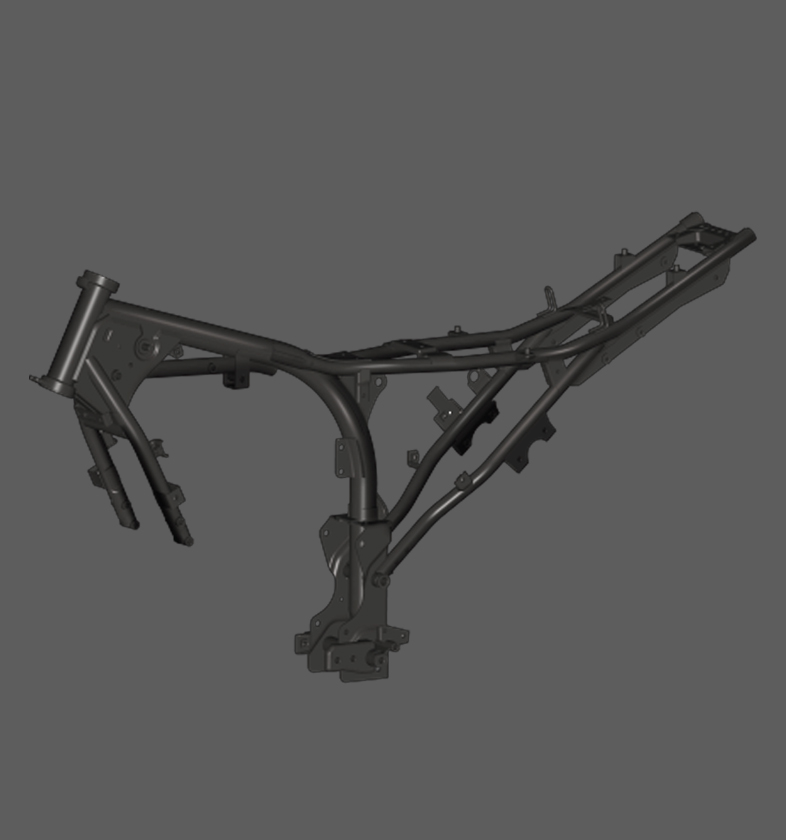

Patented Stiff Chassis
The unique Split Synchro Stiff Chassis provides increased stiffness for sharp cornering.

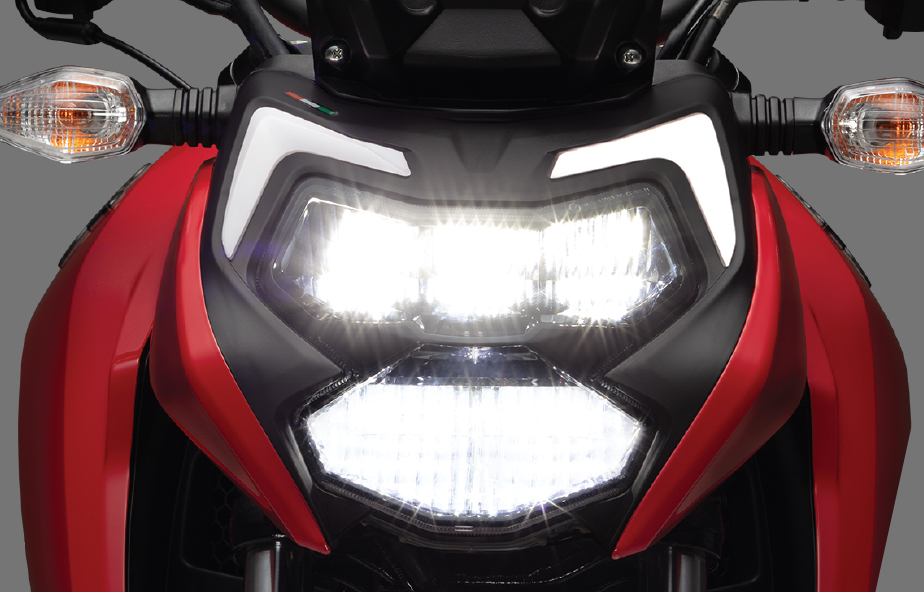

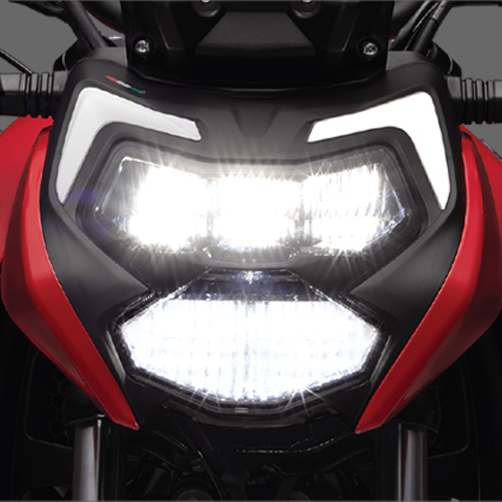

Imposing LED Headlamp
Aggression meets functionality with the high intensity LED positioned lamps with a unique fang design.

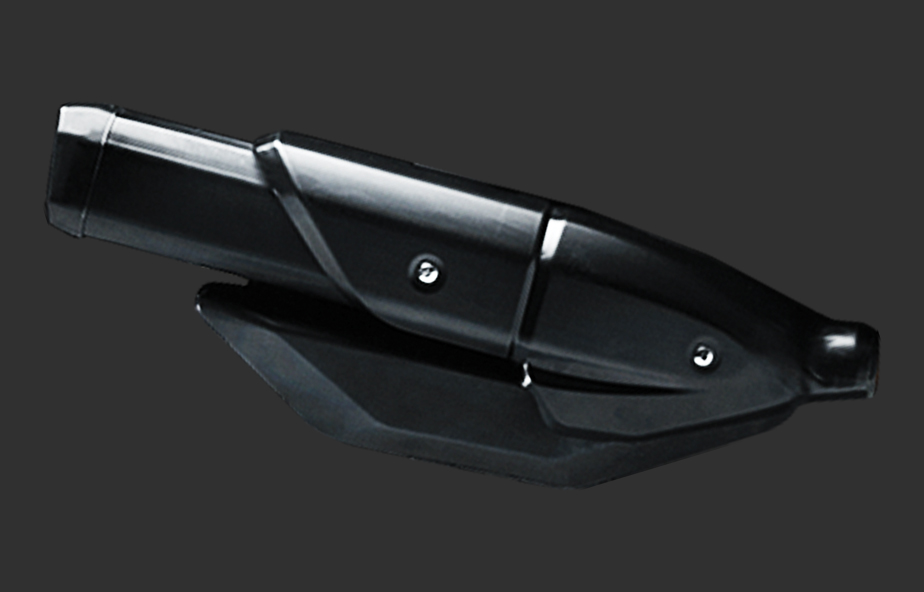

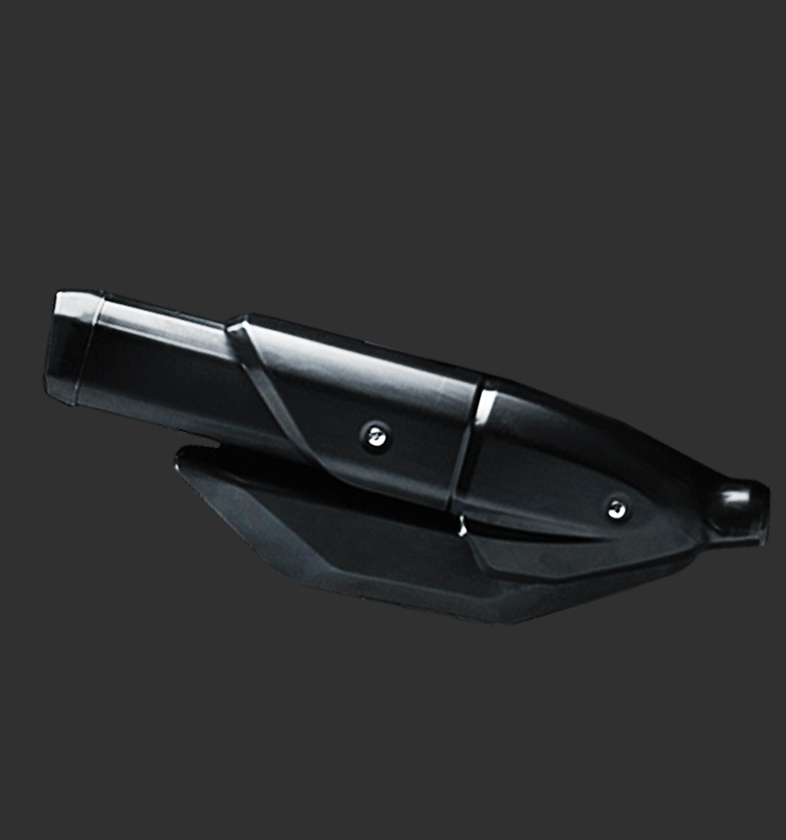

Racing Double Barrel Exhaust
Double barrel exhaust rapidly expels gases from the combustion chamber while producing a racier signature exhaust note.

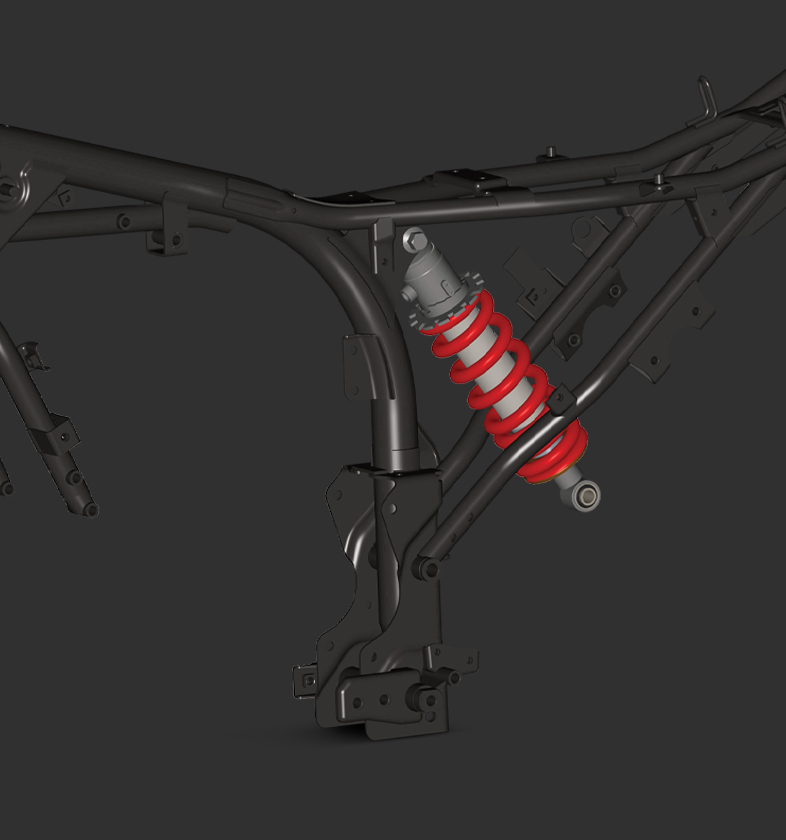

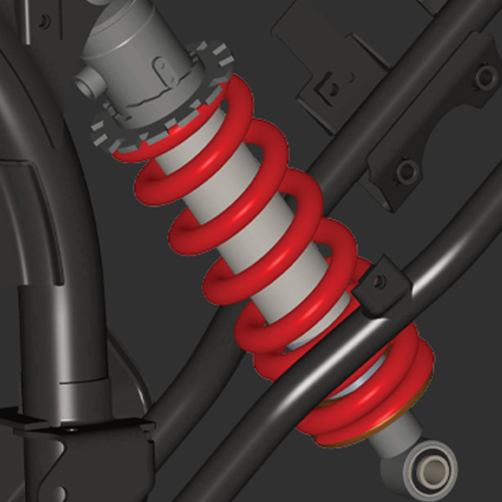

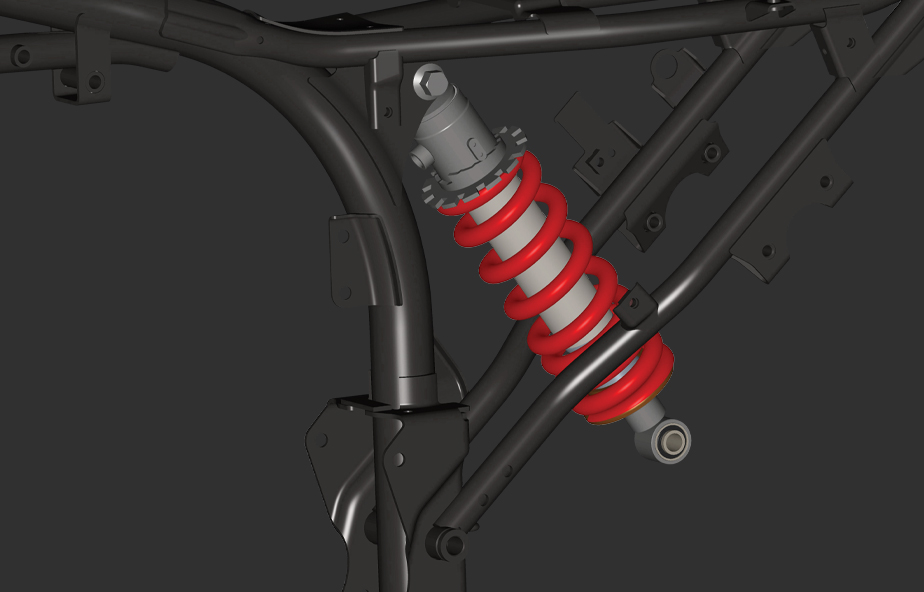

SHOWA Monoshock
The compression and rebound damping have been precision tuned on the race track . The setup give racers confidence while carrying higher cornering speeds.
Specifications
-
Type
SI, 4 stroke, Oil cooled -
Engine capacity
159.7 cm3 -
Max. Power(PS @ rpm)
16.5 PS @8000 rpm -
Max. Torque (Nm @ rpm)
14.8 Nm @ 6500 rpm -
Carburettor type
UCAL, CV -
Valve per cylinder
4 valves -
Starting
Electric Starter -
Gear box
5 speed gearbox
-
Frame
Double cradle Split Synchro STIFF -
Front Suspension
Telescopic fork -
Rear Suspension
Mono Shock
-
Battery rating (Ah)
12V, 6Ah MF -
Headlamp
AHO LED Headlamp with LED position lamp -
Tail Lamp
LED
-
Tyre (front)
90/90-17 Tubeless -
Tyre (rear)
110/80-17 Tubeless Radial
130/70-17 Tubeless Radial -

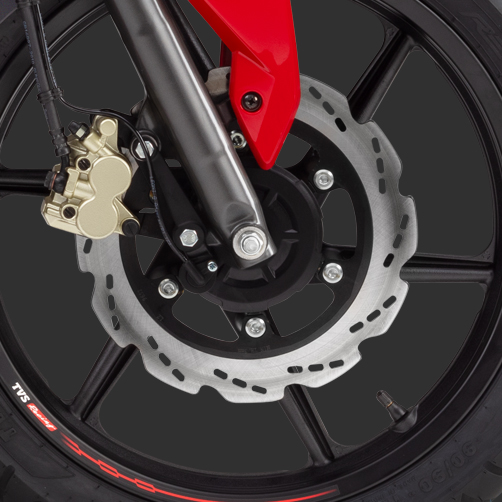

Front Brake
270mm dia Petal Disc -
Rear Brake
130mm dia Drum/ 200mm dia Petal Disc -
Brake Fluid
DOT 3 / DOT 4
-
Height
1050 mm -
Length
2050 mm -
Width
790 mm -
Wheelbase
1357 mm -
Ground Clearance
180 mm -
Saddle Height
800 mm -
Kerb weight (with 90% fuel and tool kit)
Drum - 143 kg / Disc - 145 kg
-

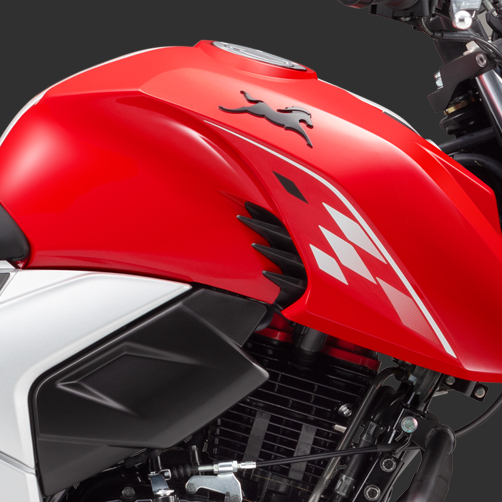

Fuel Tank Capacity
12 l
